Description
Radar kit with motion detection for Dashcam OBD & ACC.
Active protection against vandalism and vehicle damage
This anti-vandalism system for vehicles with motion detection radar offers advanced protection in parking mode, preventing acts of vandalism such as scratches, blows, attempted theft or intentional damage. Unlike traditional impact-sensing systems, it detects human presence before damage occurs, automatically triggering video recording.
This dedicated motion-sensing radar kit for dashcams is a universal accessory designed to integrate with DVR video recorders (dashcams) and automotive systems. It provides motion detection with a range of 6-8 m and is prepared for direct installation via Plug&Play type OBD/ACC, offering optimal anti-vandalism surveillance, security and advanced functionality to the vehicle while it is parked with the ignition off.
Our radar system:
- Detects human presence before damage
- Activate preventive recording in real time
- Reduce false alarms
- Protects the vehicle even against minor or intentional vandalism

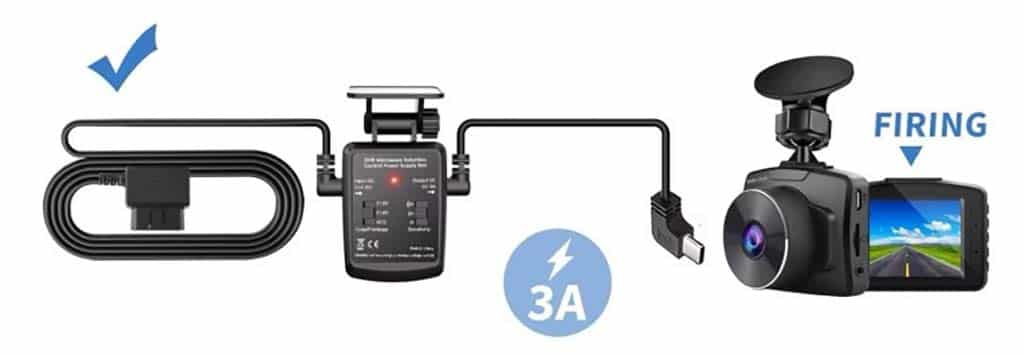

- Simple Plug&Play installation by OBD port to the vehicle and USB-C to the Camera
- It incorporates intelligent protection against battery discharge, ensuring continuous monitoring without compromising vehicle starting.
It prevents acts of vandalism in a deterrent and reactive way, combining early detection, automatic activation of recording and recording of evidence.
How do you prevent acts of vandalism?:
- Early presence detection
- The radar/detection module detects human movement 6–8 m around the vehicle, even before physical contact is present.
- This allows action to be taken before damage occurs (scratching, blows, broken windows, theft).
- Automatic recording activation
- Upon detecting suspicious motion, the system wakes up the dashcam from sleep mode.
- It starts recording immediately, capturing what happens before, during, and after the vandalism attempt.
- Clear evidence recording
- The recording is stored with a date and time stamp, useful as legal evidence.
- It allows the identification of people, actions and vehicles involved, facilitating complaints and insurance claims.
- Deterrent effect
- The visible presence of an active camera and the knowledge that the vehicle is under surveillance significantly reduces the likelihood of vandalism.
- Many acts of vandalism are opportunistic and are abandoned when perceived surveillance.
- Continuous protection in parking mode
- It works even with the vehicle parked, thanks to OBD/ACC power.
- It does not depend on impacts (like G sensors), but on radar/motion detection, which is more effective against minor or intentional vandalism.
- Reduced false alarms
- Unlike vibration sensors, radar detects real presence, preventing unnecessary triggers from wind, rain or nearby traffic.
Result:
- Proactive Prevention
- Visual deterrence
- Recorded evidence of vandalism
- Greater peace of mind for the driver or fleet manager
The recording system with radar motion detection allows the automatic capture of audiovisual evidence in the event of vandalism attempts, unauthorized access or intentional acts against the vehicle, even in the absence of the driver. The recordings generated include date and time, and may be used as documentary evidence before insurers or competent authorities, in accordance with current regulations on private use and security.
Differential advantage over G-sensor systems:
Presence Radar vs Impact Sensor (G-sensor)
- ❌ G-sensors only react after the blow
- ❌ They do not detect scratches, robbery attempts or approaches
- ❌ Generate false alarms due to wind, traffic or vibrations
✔ Our radar system:
- Detects human presence before damage
- Activate preventive recording in real time
- Reduce false alarms
- Protects the vehicle even against minor or intentional vandalism
👉 Proactive, not reactive protection
Características Clave:
- 📍 Tipo de Producto: Accesorio universal para dashcam vehículos.
- 🎯 Detección de Movimiento: Rango eficaz de 6-8 metros para activar grabación o alertas

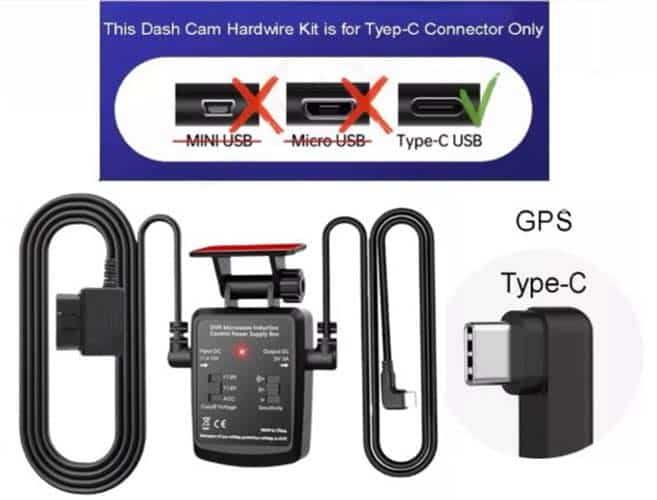

- 🔌 Conectividad: Kit hard wired para conexión a OBD/ACC del vehículo (12-24 V), y a la Cámara por puerto USB-C 5V 3A
- 🚗 Modo de Funcionamiento: Compatible con monitorización activa en marcha y modo aparcamiento con el contacto apagado.
- 🌡️ Rango de Temperaturas: Operativo entre -20 °C y 70 °C.
- 🛠️ Instalación: Montaje en parabrisas (windshield mount). Conexión Plug&Play a través del puerto OBD del vehículo
- 🔋 Voltaje de Trabajo: 12-24 V, apto para coches, furgonetas y camiones ligeros a través de conector a puerto OBD.
⚡ Protección inteligente de la batería
It incorporates intelligent protection against battery discharge, ensuring continuous monitoring without compromising vehicle starting.
The system integrates an intelligent voltage control module that constantly monitors the vehicle’s battery status and automatically disconnects power when the voltage drops below the safety threshold:
- Prevents deep battery discharge
- Ensures vehicle start
- Ideal for 24/7 surveillance in parking mode
- Perfect for extended parking
- Compatible with OBD and ACC connection (hardwire kit)
Enhanced Security Benefits: Adds active motion detection for recorders, improving vehicle surveillance both in driving and parking with perimeter motion detection
- Integration with Vehicle Systems: The OBD/ACC kit facilitates Plug&Play installation without major modifications to cables, providing power and direct ignition signal.
- Universal Support: Compatible with most recording systems and 12-24 V vehicles.
- Better User Experience: Multi-lens and wide viewing angle for wide visual coverage.

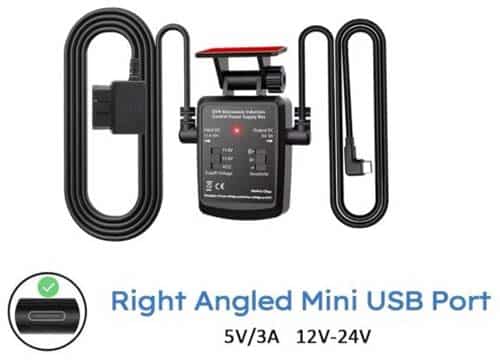

Technical Specifications:
| Model | KAZA-RD10 |
| Input Voltage | OBD/ACC 12-24 V |
| Output Voltage
Working Temperature |
USB-C port 5V 3A
-20°C~70°C |
| Angle of View | 150°-180° |
| Detection Range | 6-8 m |
| Installation | Windshield mounting |
| Units Per Package | Individual |
| Package Weight | 0.500 kg |
Poduct Parameters:
| Motion Detection | 5M |
| Power | ACC Hardwire Kit 5V/2.5 F 12V – With OBD Port Plug&Play connection |
