Description

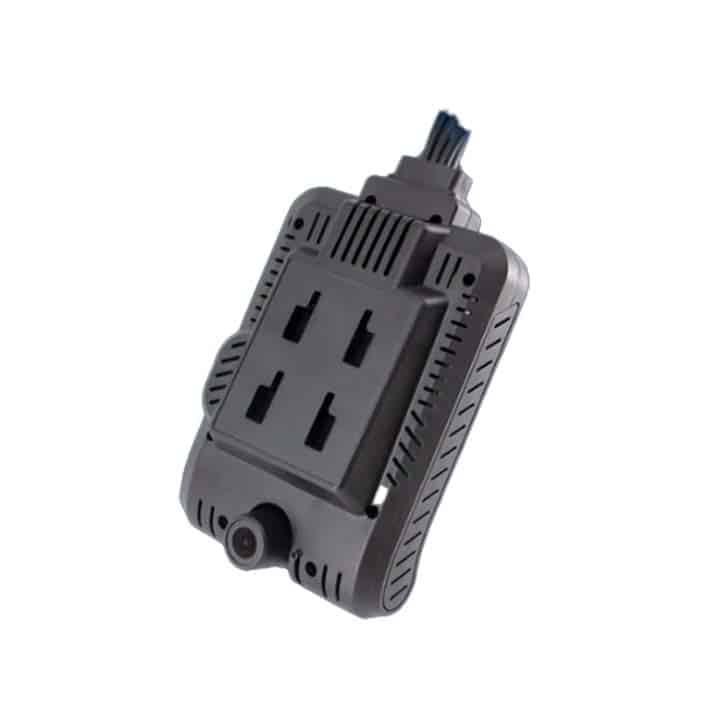

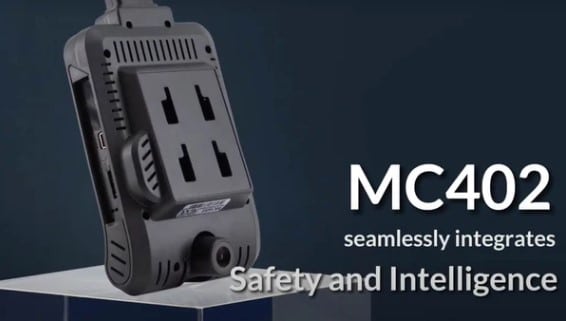

MC-402 4-channel telematics camera with ADAS and DMS (GPS, Wifi and 4G).
The MC-402 on-board telematics camera is an advanced AI-powered dashcam designed to improve vehicle safety and fleet management. It offers real-time driving behavior monitoring, including lane change, collision warnings and fatigue detection. The MC402 on-board telematics camera, a higher-capacity version of the MC202X, incorporates Power Out Alert, which ensures uninterrupted video recording when switching to backup power during power outages. With real-time alerts and enhanced safety, the MC402 provides fleet operators with reliable, continuous protection for vehicles and assets.
The MC402 professional vehicle telematics camera is a crucial tool to ensure road safety and protect against illegal activity.

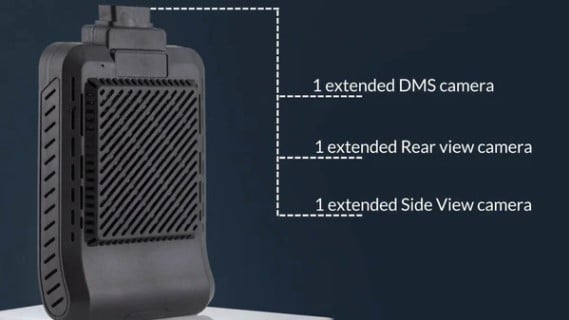

With clear HD video recording of up to four channels, it integrates a main camera, with the option of 3 other wired external cameras. The integrated camera records towards the road with ADAS system, and the other 3 additional cameras may be installed to be cab, rear or DSM type.
The main features of the MC402 telematics camera for professional vehicles offers: Possibility of GPS tracking, real-time video viewing, remote video and photo capture, remote viewing of videos and routes taken, SOS button for emergencies with pre-recording and post-recording on the server, driver behavior analysis.
The Kit includes the MC402 Main Camera plus 1 additional wired camera and a 256GB UHS Class 3 (U3) SD card for recording 1080p videos.
We offer 2 versions:
- Off-line model: No data connection to the platform with local operation via Wi-Fi
- Online model with SIM: 12 months of service with data connection with GPS tracking, real-time video from APP and Web Platform, real-time ADAS/DSM alerts and emergencies by SOS button with video and two-way voice. The service offered includes 12 months of license to use the platform/server and data SIM with a capacity of 10GB per month
- Installation service included in the price; we have a nationwide network of workshops for your installation.
Management APP for Windows // Android // IOS:
Did you know that more than 30% of logistics claims cannot be resolved due to a lack of objective evidence?
In an industry where every minute and every litre counts, full visibility from the vehicle is no longer an option – it’s a competitive advantage.
Not only do on-board cameras improve safety and reduce accidents, but they also:
✔️ They legally support your drivers.
✔️ They provide complete traceability of the routes.
✔️ They prevent unnecessary losses due to unjustified claims.

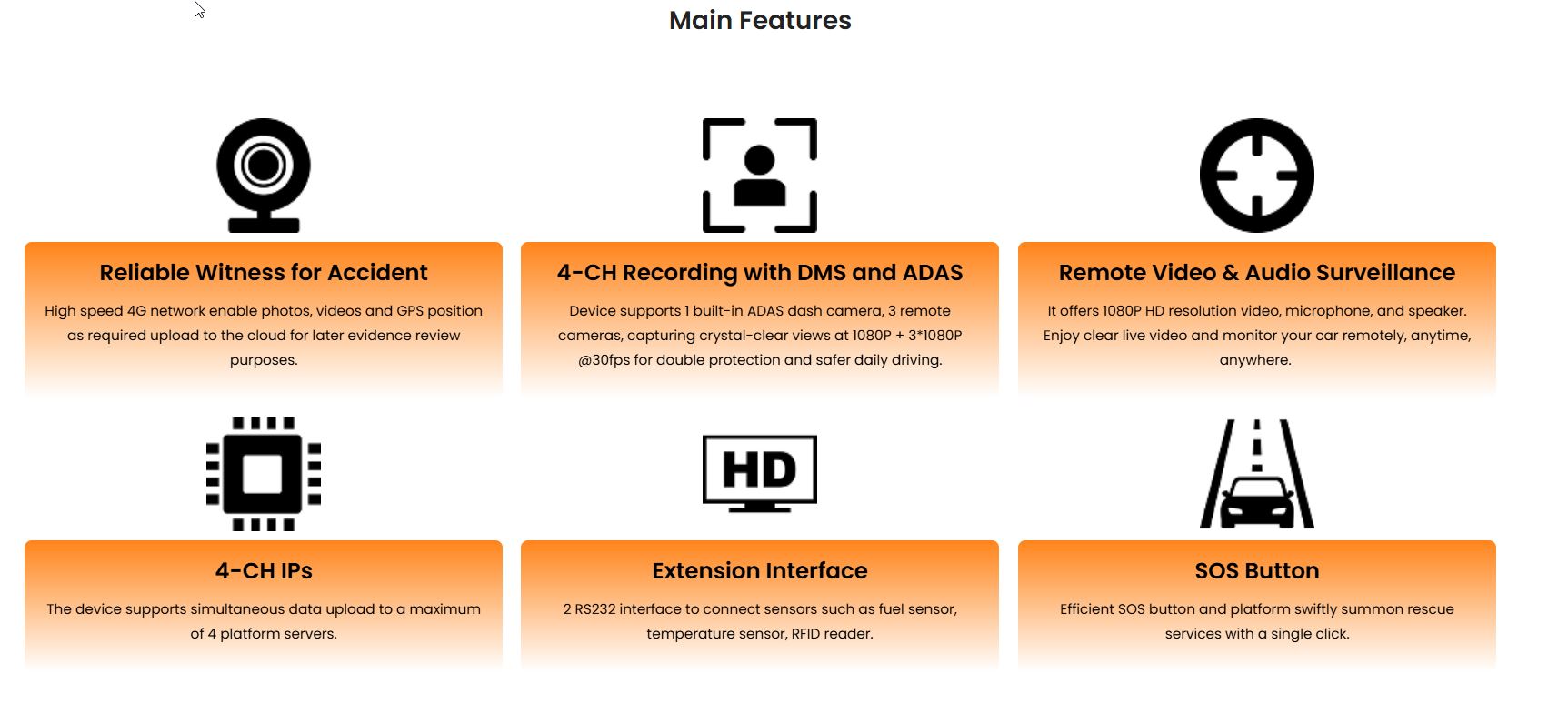

Main descripction
- Built-in microphone + speaker
- It captures in-cabin audio and supports two-way voice alerts — providing passenger safety, driver-passenger communication, and clear incident logs.
- Improves evidence collection with both video and sound.
- 4*1080P Cameras
- The AI dashcam offers full visibility on the road, load monitoring, and risk mitigation. It supports driver safety, regulatory compliance, and operational efficiency.
- 4×1080P multi-angle cameras capture front, rear, side and cabin views.
- MC402 dashboard camera with 4-channel AI, 1 integrated camera and 3 external cameras. Multi-view monitoring for fleet safety. Real-time ADAS alerts and driver monitoring to reduce risk.
Technical specifications:
Hardware
| Operating system | Linux |
| UPC | ARM Cortex CA9 Dual Core + NPU at 0.7 |
| Memory | DDR 512M+TF Card (Max. 512G) |
| Global Navigation Satellite System (GNSS) | GPS+BDS |
| G-Sensor | 3-axis acceleration sensor |
| Spokesman | Yes |
| Microphone | Yes |
| SIM card | Standard SIM |
| USB | Yes |
| LED | Red (On), Green (Internet & Video Recording) |
| I/O Ports | 2*RS232 |
Net
| Cellular | LTE + WCDMA + GSM |
| Neck Guard | MC402-EU: LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8MC402-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE TDD: B40 WCDMA: B1/B2/B4/B5/B8 GSM: B2/B3/B5/B8MC402-NA: LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 |
| Wi-Fi | 2.4 GHz, 802.11 b/g/n |
| Protocol | JT/T808-2011, JT/T808-2019JT/T1076-2016, JT/T1078-2016 |
Cameras
| Forehead | 1080P ADAS/82° (HFoV) |
| External 1 | 1080P |
| External 2 | 1080P |
| External 3 | 1080P |
| Video Encoding | H.264/H.265, H.264 default |
| Video Standards | PAL, NTSC |
| Video Resolution | Options: 1080P/720P/D1Total 1080P at 60fps |
| Compression format | G.711A |
Other
| Power Supply | DC: +9 V ~ +36 V |
| Operating Temperature | -10°C to +60°C |
| Operating humidity | 20% to 80% |
| Net weight | 300 grams |
| Dimension | 138 mm x 85 mm x 45 mm |
| Degree Giving Process | CE/FCC/RoHS |
