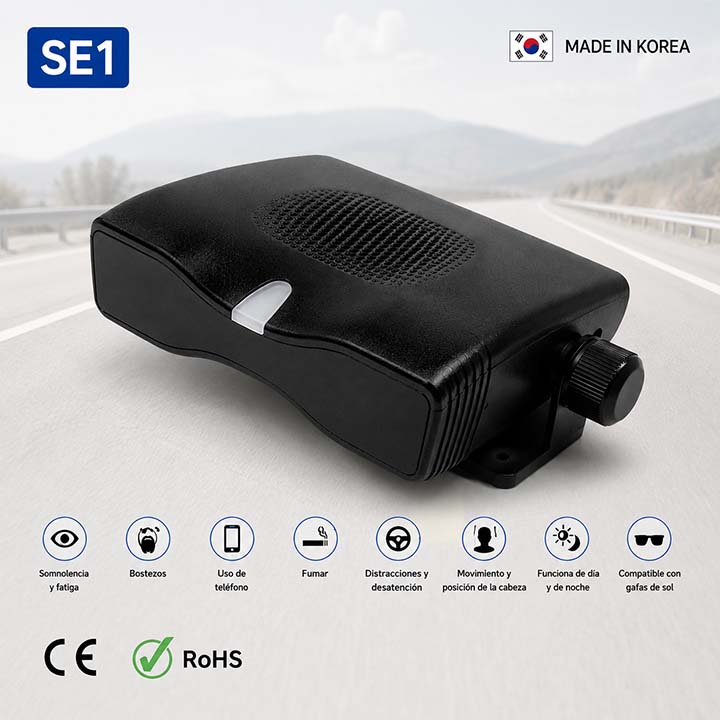

Drive state monitor and driver drowsiness detection Vuemate SE11 with GPS

399,00 329,75 without vat

The new Korean-made Vuemate SE1 detector includes the most advanced DSM and DDD (Driver State Monitor and Driver Drowsiness Detection) technology.

This model is the result of the evolution of the previous DL330 model, widely implemented by fleets around the world.

Vuemate fatigue, sleep and drowsiness monitors are pioneers in the global market. They allow monitoring drivers through a camera focused on their face and connected to the centralized artificial vision system, with the aim of detecting distractions and drowsiness. The DSM analyzes the driver’s level of attention, and the DDD detects drowsiness by alerting in case of tiredness, sleep or distractions through acoustic and visual signals.

DSM and DDD systems are designed to prevent accidents related to distractions, fatigue or drowsiness. Studies in this field show that its use could reduce fatalities by 5%, and accidents with victims by 3%.

It is already equipped as standard by 23% of new vehicles and, soon, European regulations will require its installation in all commercial and passenger vehicles in Europe.

We offer financing through Technological Renting up to 60 installments, see example below for the purchase of 12 pieces of equipment:

AMOUNT: 3.213,23 + VAT
12 MONTHS 24 MONTHS 32 MONTHS 48 MONTHS 60 MONTHS
316,02ā‚¬ + VAT 167,38ā‚¬ + VAT 118,64ā‚¬ + VAT 91,36ā‚¬ + VAT 78,75ā‚¬ + VAT

logo_CE_RoHS_FC

logo_web_kaza_distribuidor_autorizado

In stock

Description

Drive state monitor and driver drowsiness detection Vuemate SE11 with GPS

The new Korean-made Vuemate SE1 detector includes the most advanced DSM and DDD (Driver State Monitor and Driver Drowsiness Detection) technology.

logo_CE_RoHS_FC

This model is the result of the evolution of the previous DL330 model, widely implemented by fleets around the world.

Vuemate fatigue, sleep and drowsiness monitors are pioneers in the global market. They allow monitoring drivers through a camera focused on their face and connected to the centralized artificial vision system, with the aim of detecting distractions and drowsiness. The DSM analyzes the driver’s level of attention, and the DDD detects drowsiness by alerting in case of tiredness, sleep or distractions through acoustic and visual signals.

DSM and DDD systems are designed to prevent accidents related to distractions, fatigue or drowsiness. Studies in this field show that its use could reduce fatalities by 5%, and accidents with victims by 3%.

Pack Detector de sueƱo y distracciones Vuemate SE1 con GPSIt is already equipped as standard by 23% of new vehicles and, soon, European regulations will require its installation in all commercial and passenger vehicles in Europe.

We offer financing through Technological Renting up to 60 installments, see example below for the purchase of 12 pieces of equipment:

AMOUNT: 3.213,23 + VAT
12 MONTHS 24 MONTHS 32 MONTHS 48 MONTHS 60 MONTHS
316,02ā‚¬ + VAT 167,38ā‚¬ + VAT 118,64ā‚¬ + VAT 91,36ā‚¬ + VAT 78,75ā‚¬ + VAT



Authorized/recommended for Repsol and Linde Gas distribution fleets:

Pack Detector de sueƱo y distracciones Vuemate SE1 con GPS Pack Detector de sueƱo y distracciones Vuemate SE1 con GPS

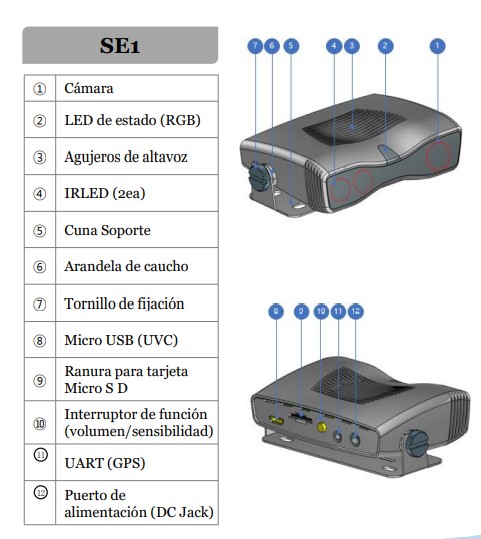

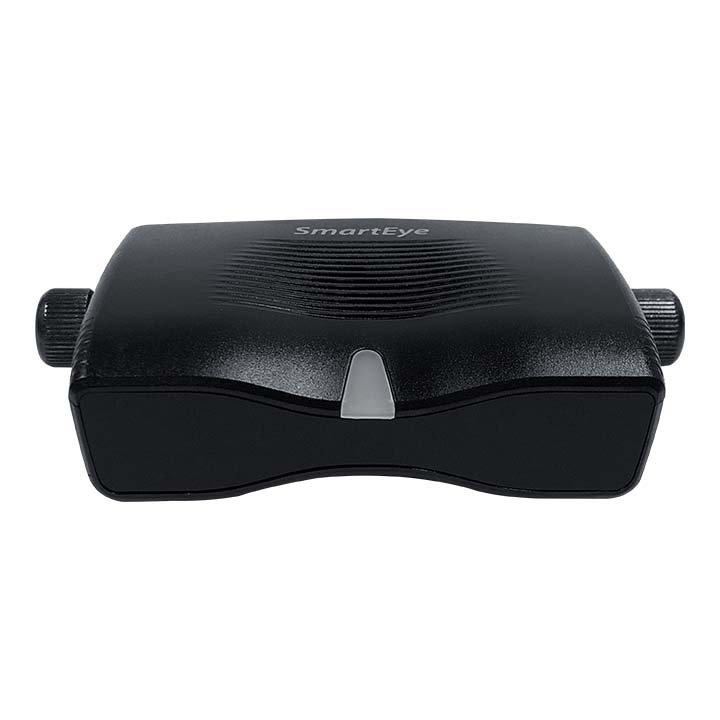

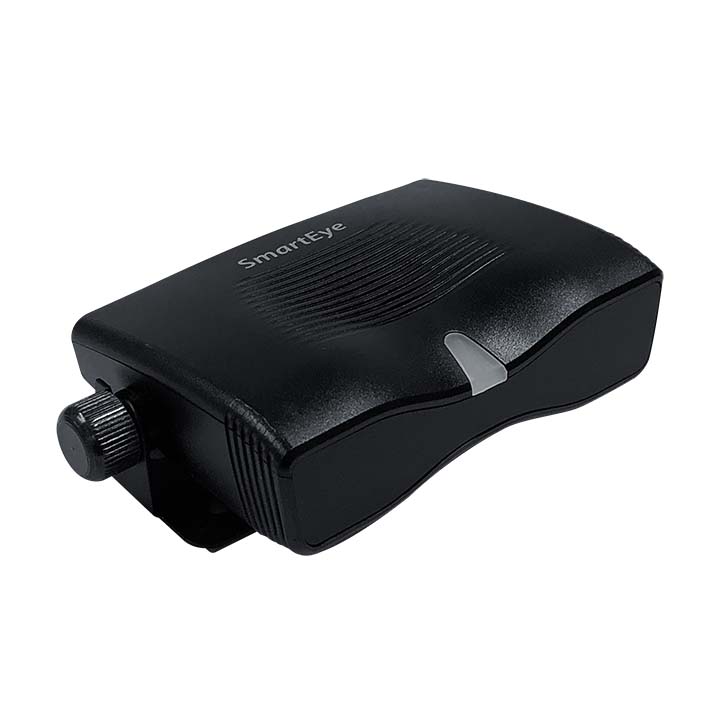

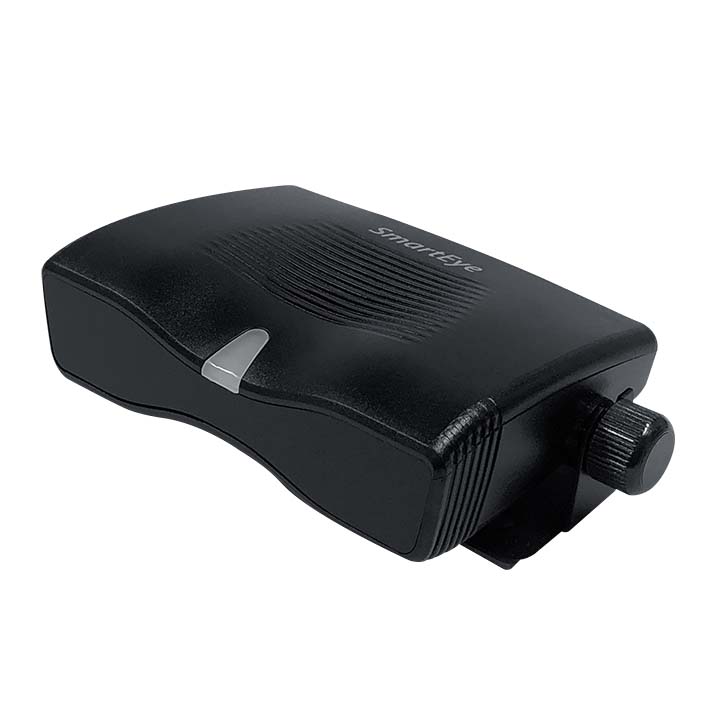

The Vuemate SE1 device constantly monitors all facial gestures. Through a complex facial recognition algorithm, it detects when signs of tiredness, sleep or distractions are occurring, even using sunglasses or at night. Simple and effective, it immediately detects danger by warning with powerful audible alerts and LED lights.Pack Detector de sueƱo y distracciones Vuemate SE1 con GPS

With the GPS accessory, the operation can be linked to the speed. In this instance, the Vuemate SE1 drowsiness detector becomes more accurate by practically minimizing false alerts in city-driving since there is a variable coupling of the device to the speed of the vehicle.

Pack Detector de sueƱo y distracciones Vuemate SE1 con GPS

Additional information

  • Intelligent image monitoring algorithm.
  • Intuitive smart recognition system that contrasts with other similar recognition systems such as LDWS, G-sensor based accessories, etc.
  • Detection and warning of drowsiness, fatigue, neglect and distraction when driving.
  • Cognitive operational scenario for early warnings by both LEDs and audio.
  • High-power infrared LED lights available at night and in tunnels.
  • Uses special filters to remove irregular reflections from sunlight.
  • Detection/distinction of glasses and sunglasses (excludes mirror and safety glasses).
  • Sensitivity adjustment in 3 steps.
  • Silence and volume control in 3 steps.
  • Improvements and new features available by downloading Firmware Update with USB Micro-Connector.
  • Works at DC12V and 24V, so it is suitable for any vehicle.
  • Exclusive support for easy installation and adjustment.
  • Supports various USB accessories (LED warning and vibration lights, etc.).
  • Interoperability with external devices, such as car navigators and dashboard security cameras, etc. (optional)
  • Connection to an external GSP (included in this Pack).

New features of SE modelsPack Detector de sueƱo y distracciones Vuemate SE1 con GPS

  • Third generation line-up.
  • Mask-wearer recognizable.
  • Powerful performance with Cortex-A7 at 1.2 GHz SoC.
  • Using the HD image sensor, no adjustment required in connection to the driver’s height.
  • Improved detection rate on all events.
  • Easy configurations and firmware updates via a micro-SD card.
  • Snapshot captured and sent via RS232 when each event occurs.
  • Personalized alarm sound and voice announcement as per user requirements.

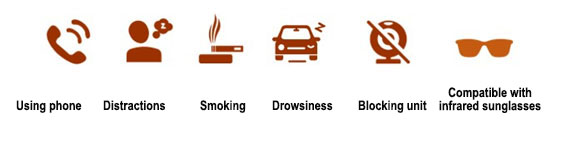

  • With more sophisticated features: detects yawning, smoking and handset usage.
  • Driver recognition available ā€“ for ID verification (TBD).
  • Secure mounting cradle with tamper-proof Torx screw and extension bracket (for SE3).
  • Smart phone streaming by apps with built-in BLE module (for SE1, to be determined).



Pack Detector de sueƱo y distracciones Vuemate SE1 con GPSSpecifications

  • Model Name: CDPSE1
  • Physical dimensions: 74.8 x 53 x 23.8mm
  • Net weight: 80 g (including stand)
  • Color: Black
  • Camera: CMOS Image Sensor
  • Audio: Micro-speaker (Min. 90 dB)
  • Input voltage: DC 12V / 24V
  • Electricity consumption: Max. 2.5W
  • Operating temperature: -20

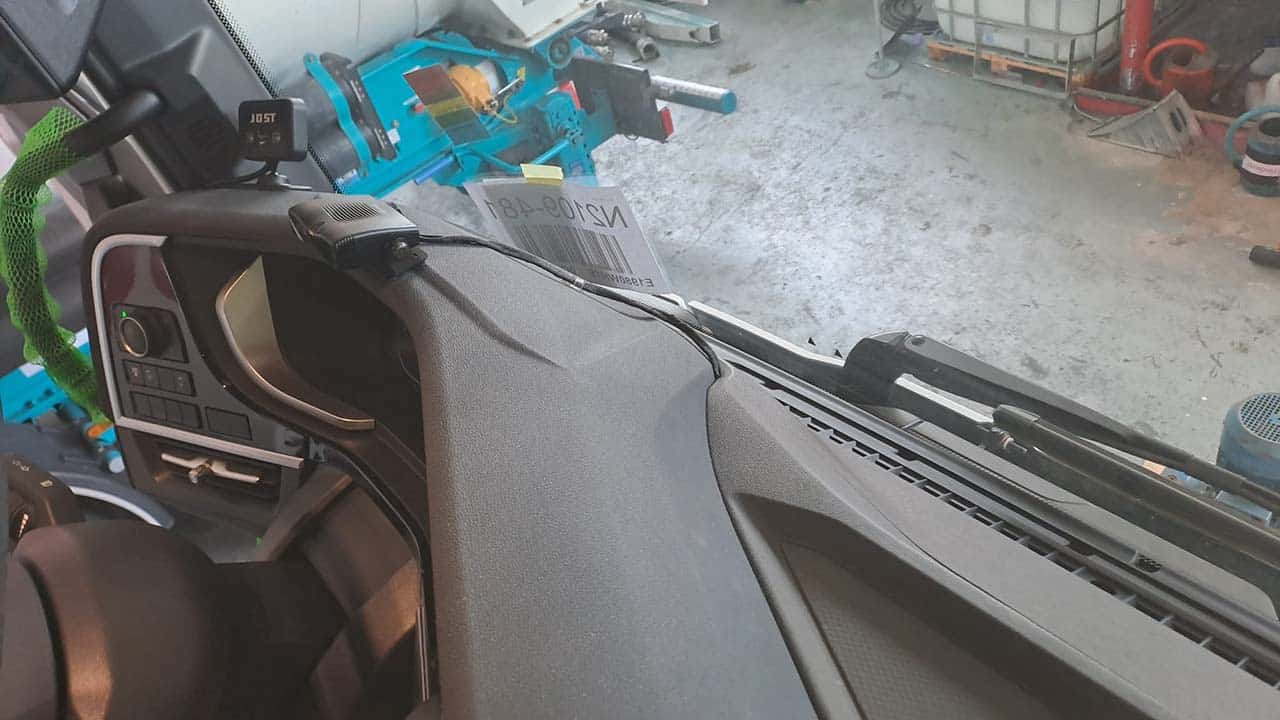

Actual installation pictures:

Pack Detector de sueƱo y distracciones Vuemate SE1 con GPSPack Detector de sueƱo y distracciones Vuemate SE1 con GPS















Sleep behind the wheel kills

el sueƱo al volante mata

https://xn--elsueoalvolantemata-z3b.dgt.es/

Documents

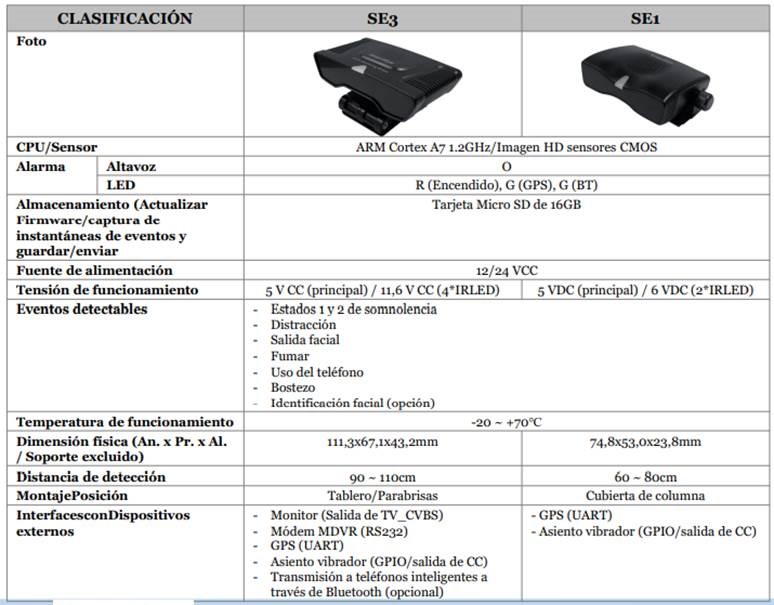

PDF -> Comparativa (DL330A_vs_SE1) Feb2022 En Es.pdf

PDF -> IntroducciĆ³n a los nuevos monitores de estado del conductor

Video
