Description

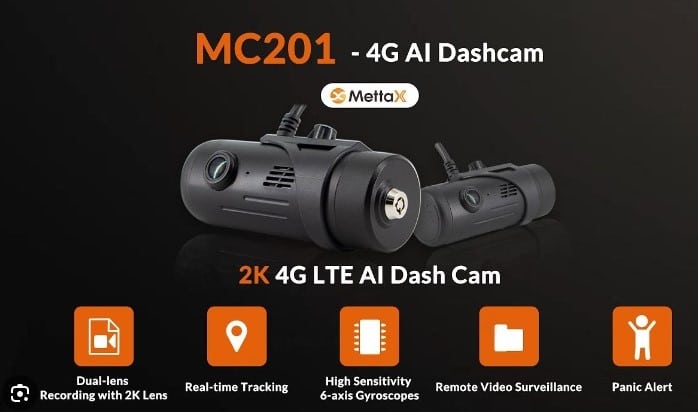

MC201 telematics camera for professional vehicles (GPS, Wifi and 4G).
Pioneering the future of road safety, the new AI-powered on-board telematics camera incorporates a 2K camera and a 1080P wired external camera. Equipped with ADAS and DMS, it features a 2K high-definition camera that captures every detail.
The MC-201 professional vehicle telematics camera with ADAS and DMS functions is a professional tool to ensure road safety and protect against illegal activity.
With a clear HD video recording it has a fixed cabal and an optional second wired.
In addition, the MC201 telematics camera has other advanced functions: GPS location and tracking, real-time video viewing, remote video and photo capture, remote video and route viewing, SOS button for emergencies with pre-recording and post-recording on the server, driver behavior analysis using AI: DSM and ADAS.
- We offer 2 versions:
- Offline Model: No data connection to the platform. Enables local camera operation and access via Wi-Fi, requiring neither a SIM card nor a connectivity fee.
- Online Model with Professional 4G/5G IoT SIM: Includes a 12-month platform/server license and a professional IoT SIM with a 60 GB data allowance for 12 months. Features include GPS tracking, real-time video via the app and web platform, real-time ADAS/DMS alerts, and emergency management via an SOS button (including video and two-way voice communication). The 60 GB allowance is provided as an annual pool, allowing data usage to be distributed according to actual operational needs over the 12-month period. If the 60 GB is consumed before the contract term ends, capacity can be increased via additional data packages without needing to replace the SIM card.
- Installation service included in the price: We have a nationwide network of specialized workshops to perform professional installation of the telematics cameras.
Management APP for Windows // Android // IOS:
Did you know that more than 30% of logistics claims cannot be resolved due to a lack of objective evidence?
In a sector where every minute and every liter count, full visibility from the vehicle is no longer an option: it’s a competitive advantage.
On-board cameras not only improve safety and reduce accidents, but they also:
✔️ They legally support your drivers.
✔️ They provide complete traceability of journeys.
✔️ They prevent unnecessary losses due to unjustified claims.
6-axis G-sensor
High-sensitivity gyroscopes detect sudden accelerations, harsh braking, sharp turns, and collisions in real time.
In ride-hailing and taxi services: Provides verifiable evidence of incidents, ensuring passenger safety and regulatory compliance.

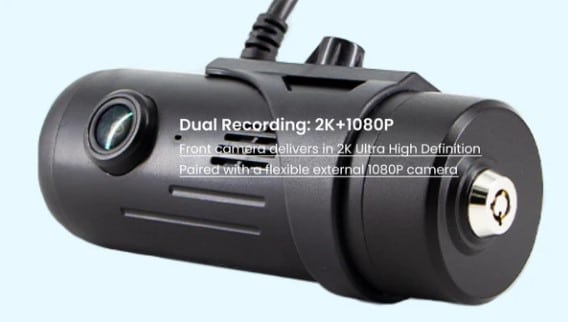

Dual recording: 2K+1080p
The front camera records in 2K Ultra High Definition and is complemented by a flexible 1080p external camera for versatile positioning.
They offer complete coverage of both the road environment and the cabin.
Specifications:
Hardware
- Operating system: Linux
- CPU_ Dual-core CPU + NPU@1.0T
- Memory: 2G DDR + TF card (max. 512G)
- GNSS: GPS + BDS (with external G-mouse)
- G-sensor: 6-axis acceleration sensor
- Speaker: Yes
- Mic: Yes
- SIM Card: Nano SIM
- I/O Ports: 1 Digital Input, 1 Digital Output
Net
- Cellular: LTE + WCDMA + GSM
- Bands:
- MC201-EU:
- FDD LTE: B1/B3/B5/B7/B8/B20/B28
- TDD LTE: B38/B40/B41
- WCDMA: B1/B5/B8
- GSM: B3/B8
-
- MC201-LA:
- FDD LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66
- TDD LTE: B40
- WCDMA: B1/B2/B4/B5
- GSM: B2/B3/B5/B8
- MC201-NA:
- FDD LTE: B2/B4/B5/B12/B13/B14/B66/B71
- WCDMA: B2/B4/B5
- MC201-LA:
- WIFI: 2.4GHz, 802.11 b/g/n
- Protocol
- JT/T808-2011, JT/T808-2019
- JT/T1076-2016, JT/T1078-2016
Cameras
- Front: 2K ADAS/130° (HFoV)
- External: 1080P
- Video encoding: H.264/H.265, default H.264
- Video Standards: PAL, NTSC
- Video resolution: D1/HD1/CIF options available.
- Compression format: G.711A.
Other
- Power supply: DC: +9V ~ +36V
- Operating temperature: -20°C to +70°C
- Operating humidity: <90%
- Net weight: 161.8g
- Dimensions: 120mm*40mm*40mm
- Certification: CE/FCC/RoHS.
